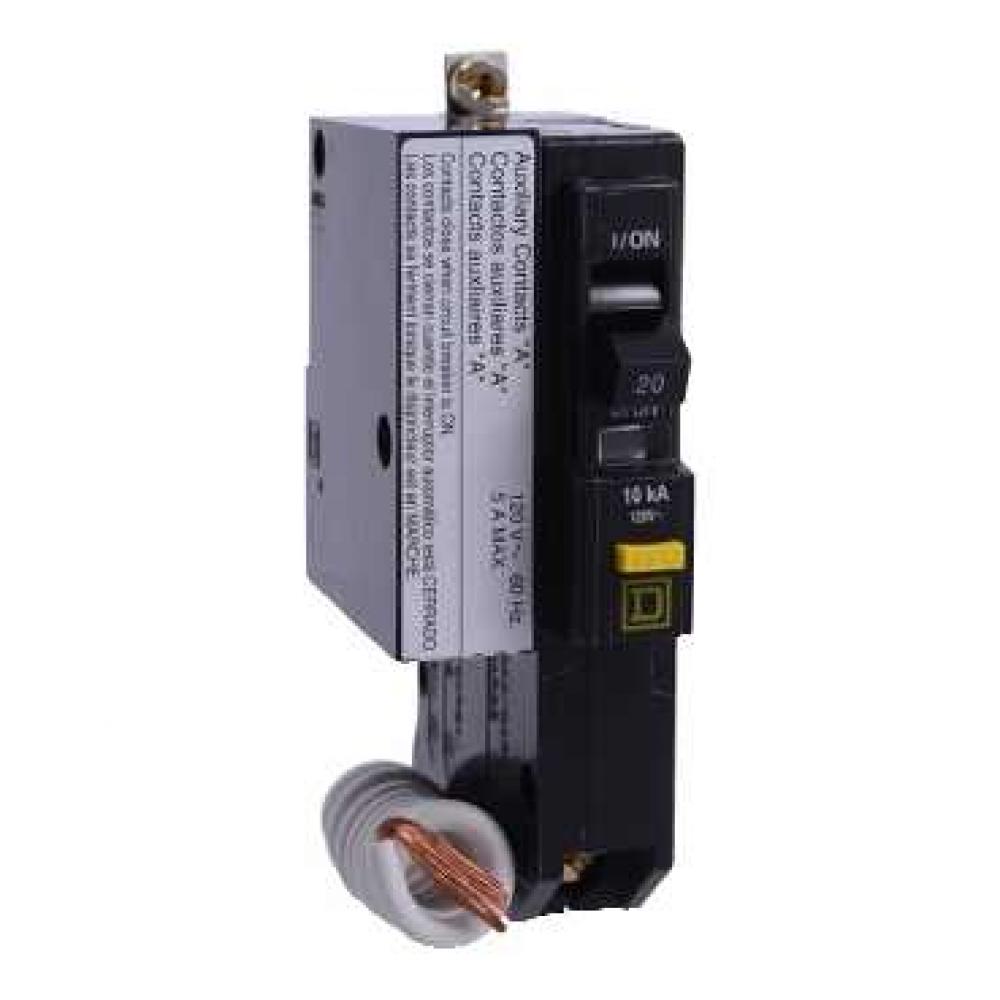

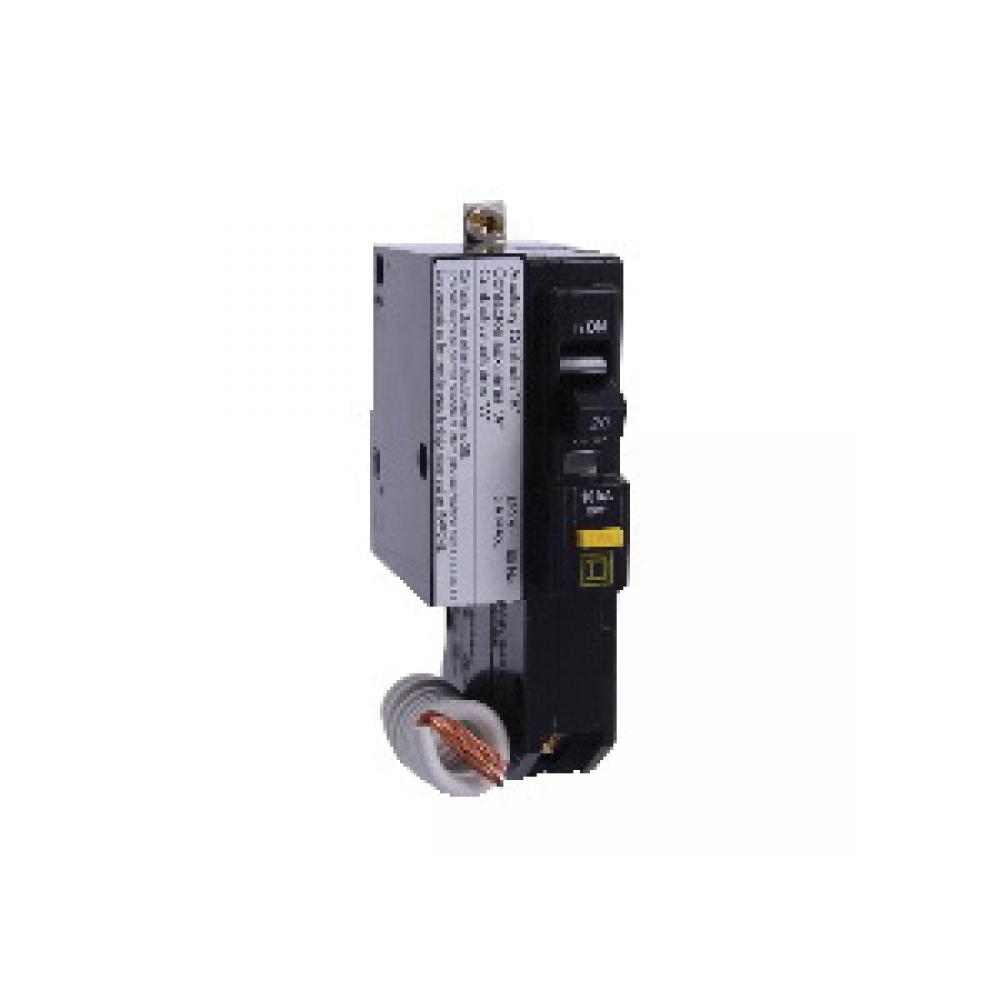

Schneider Electric QO™ QOB120GFI1201 Type QOB-GFI Class A Ground Fault Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA, 1 Pole, Thermal Magnetic Trip
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 3:
Ground-Fault Circuit Breakers
Application:
Residential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel, Series Arc Fault/ground fault Protection
Auxiliary Contact Rating:
Category Name:
Ground-Fault Circuit Breakers
Dimensions:
1.5 in W x 2.91 in D x 4.12 in H
2.91 in L x 1.5 in W x 4.12 in H
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|UL 489 File No. E84967|CSA C22.2 No. 5|NEMA AB1|Federal Specification W-C-375B/GEN|NOM/ANCE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State
Type:
Type QOB Class A Ground Fault
Type QOB-GFI Class A
Wire Size:
12 to 8 AWG Al, 14 to 8 AWG Cu
12 to 8 AWG, 14 to 8 AWG
Manufactured By:
Square D by Schneider Electric
