Schneider Electric QOB120EPD2100

Schneider Electric QOB120EPD2100 by Square D by Schneider Electric

$
516
71
/ EA / 1 EA
  • Part Number: QOB120EPD2100
  • UPC: 00785901763727
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

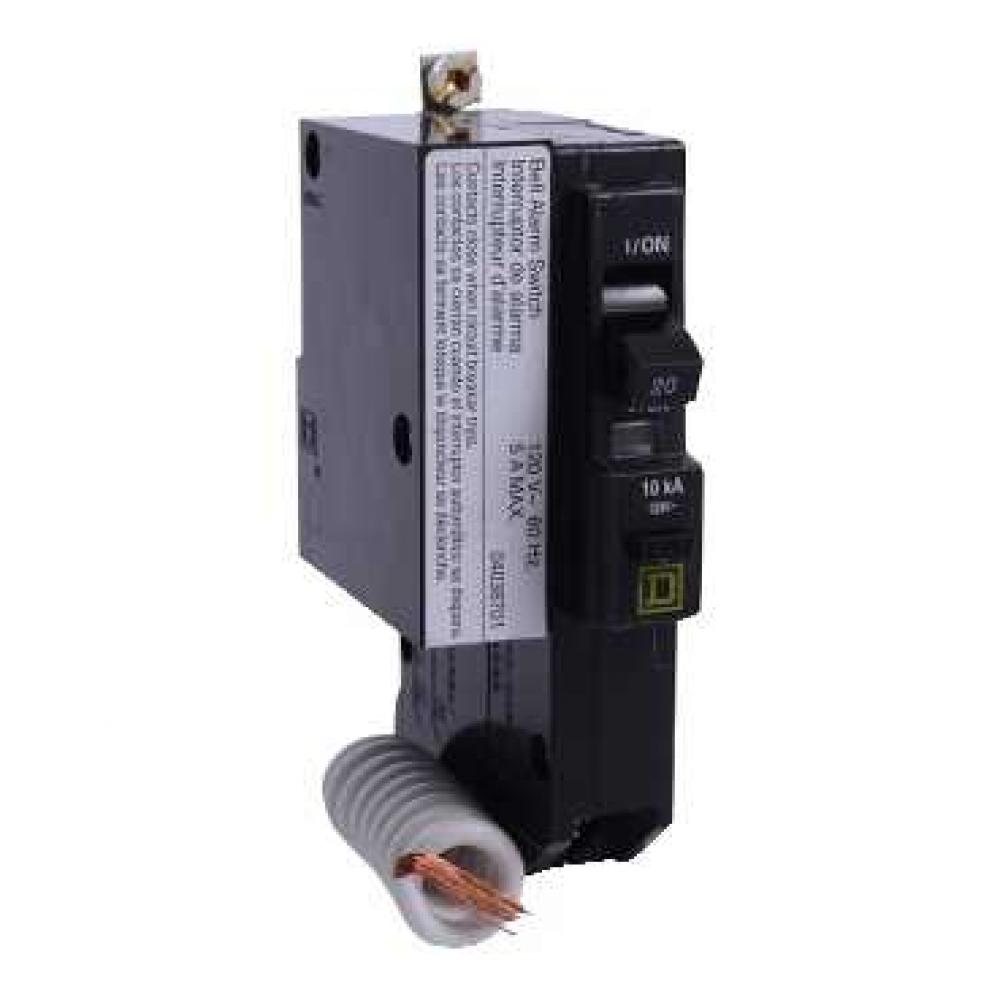

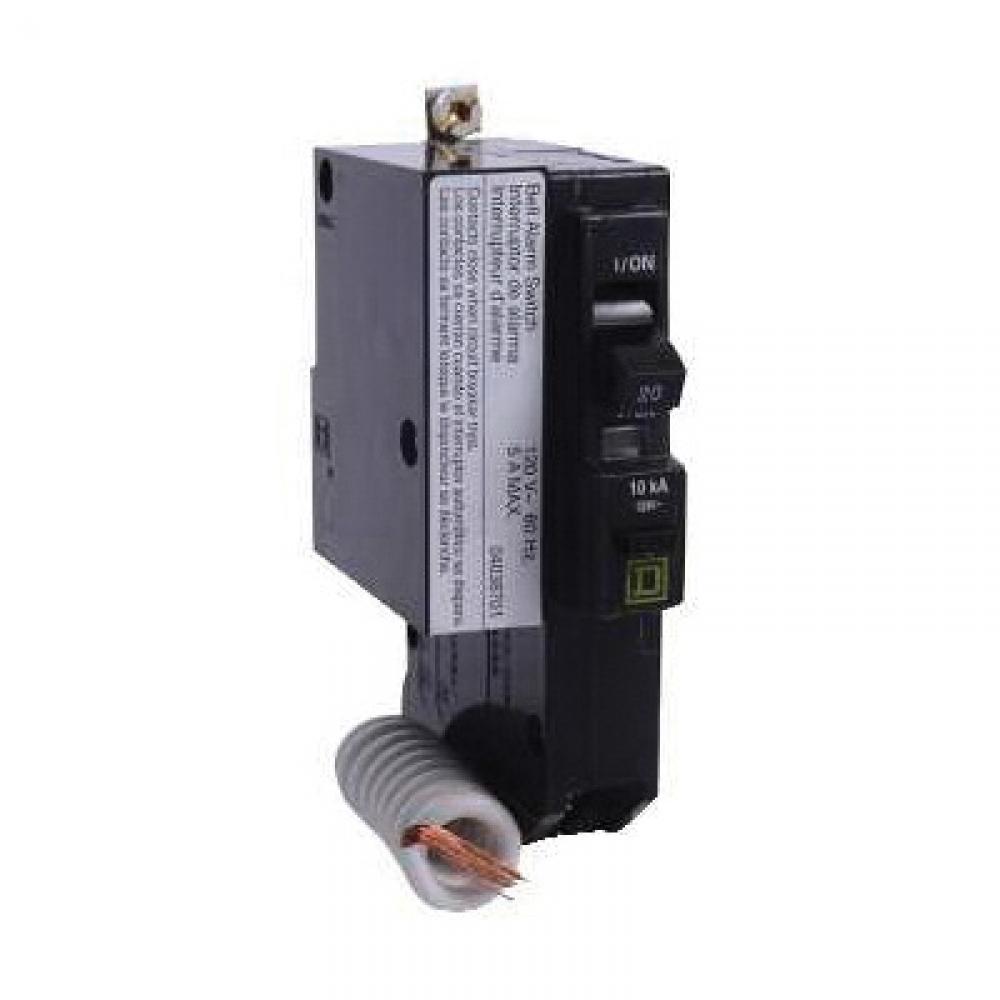

Square D™ QO™ QOB120EPD2100 Type QOB-EPD Class B Ground Fault Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA, 1 Pole, Thermal Magnetic Trip
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Circuit Breakers
Category Level 3:
Ground-Fault Circuit Breakers
Amperage Rating:
20
20 A
Application:
For providing overload, short circuit protection and 30 mA class B ground fault protection for equipment
Category Name:
Ground-Fault Circuit Breakers
Connection Type:
Pressure Plate
Country:
USA
Dimensions:
1-1/2 in W x 2.91 in D x 4.12 in H
2.91 in L x 1.5 in W x 4.12 in H
Frequency Rating:
50/60
50/60 Hz
Interrupt Rating:
10
10 kA at 120 VAC
Length:
5.0
Material:
Fiberglass Filled Thermoset
Mounting Type:
Bolt-On
Number of Poles:
1
Phase:
1
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5|NEMA AB1|Federal Specification W-C-375B/GEN|NOM/ANCE Certified|eccn: EAR99
Temperature Rating:
104
104 deg F
Trip Type:
Thermal Magnetic
Type:
Type QOB-EPD Class B
Type QOB-EPD Class B Ground Fault
Unspsc:
39121603
Voltage Rating:
120
120 VAC
Volume:
48.0
Weight:
1.0
Wire Size:
14 to 8
14 to 8 AWG Cu, 12 to 8 AWG Al
Additional Information
Manufactured By:
Square D by Schneider Electric
