Image may not reflect selected features

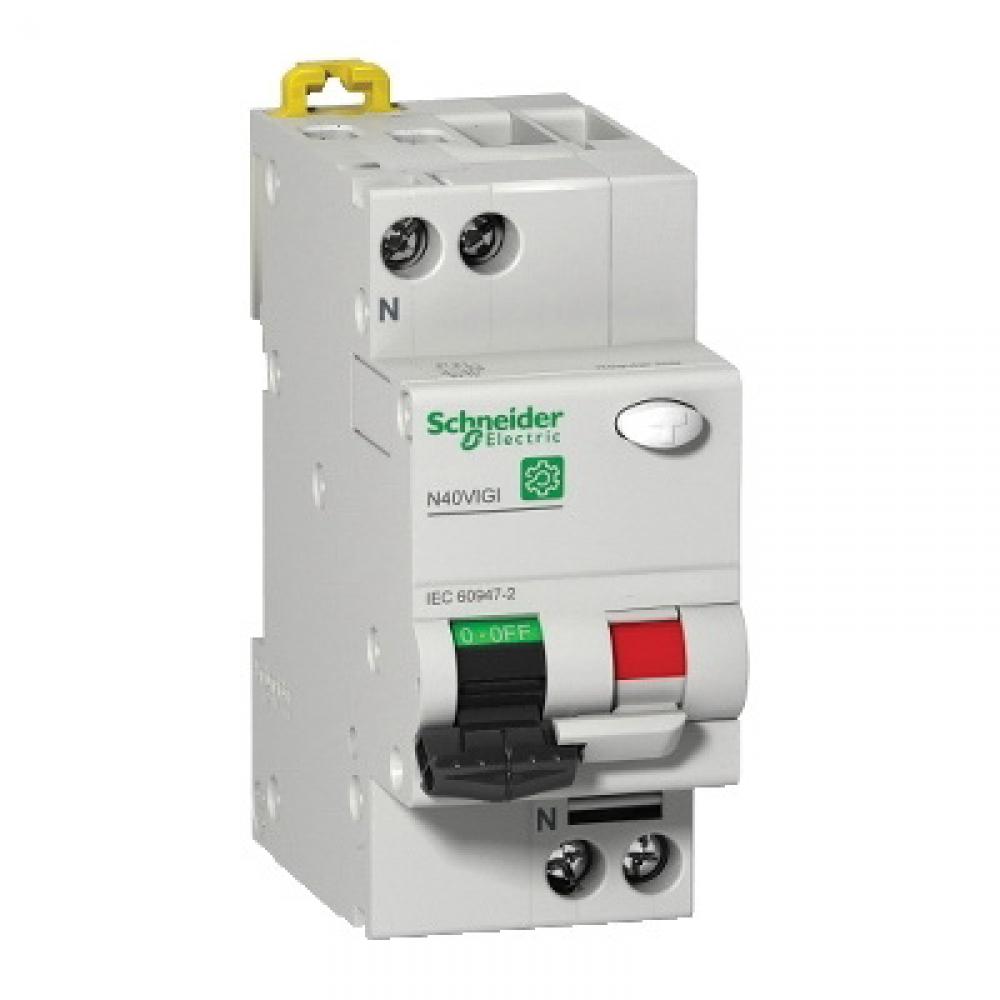

Schneider Electric M9D11616

Schneider Electric M9D11616 by Square D by Schneider Electric

$
382
06
/ 1
  • Part Number: M9D11616
  • UPC: 00785901280002
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Schneider Electric Multi 9™ M9D11616 Type AC N40 Vigi™ Residual Current Circuit Breaker With RCBO Overcurrent Protection, 240 VAC, 16 A, 6 kA, 1 Pole, Thermal Magnetic/Curve C Trip
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Circuit Breakers
Category Level 3:
Ground-Fault Circuit Breakers
Actuator Type:
Toggle
Amperage Rating:
16
16 A
Application:
Distribution Applications
Category Name:
Ground-Fault Circuit Breakers
Color:
Gray
Connection Type:
Tunnel
Country:
USA
Dimensions:
70 mm L x 36 mm W x 81 mm H
Enclosure Type:
IP20/IP40
Frequency Rating:
50
50 Hz
Interrupt Rating:
6
6 kA
Length:
0.0
Mounting Type:
Clip-On/DIN Rail
Number of Poles:
1
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|EN/IEC 61009-1/60947-2|eccn: EAR99
Temperature Rating:
-5 to 60
-5 to 60 deg C
Trip Type:
C-Curve/Thermal Magnetic
Thermal Magnetic/Curve C
Type:
Type AC N40 Vigi™
Unspsc:
39121603
Voltage Rating:
240
240 VAC
Volume:
0.0
Weight:
0.0
Wire Size:
0.75 to 16 sq-mm, 0.33 to 10 sq-mm
0.75 to 16/0.33 to 10 sq-mm
Additional Information
Manufactured By:
Square D by Schneider Electric
