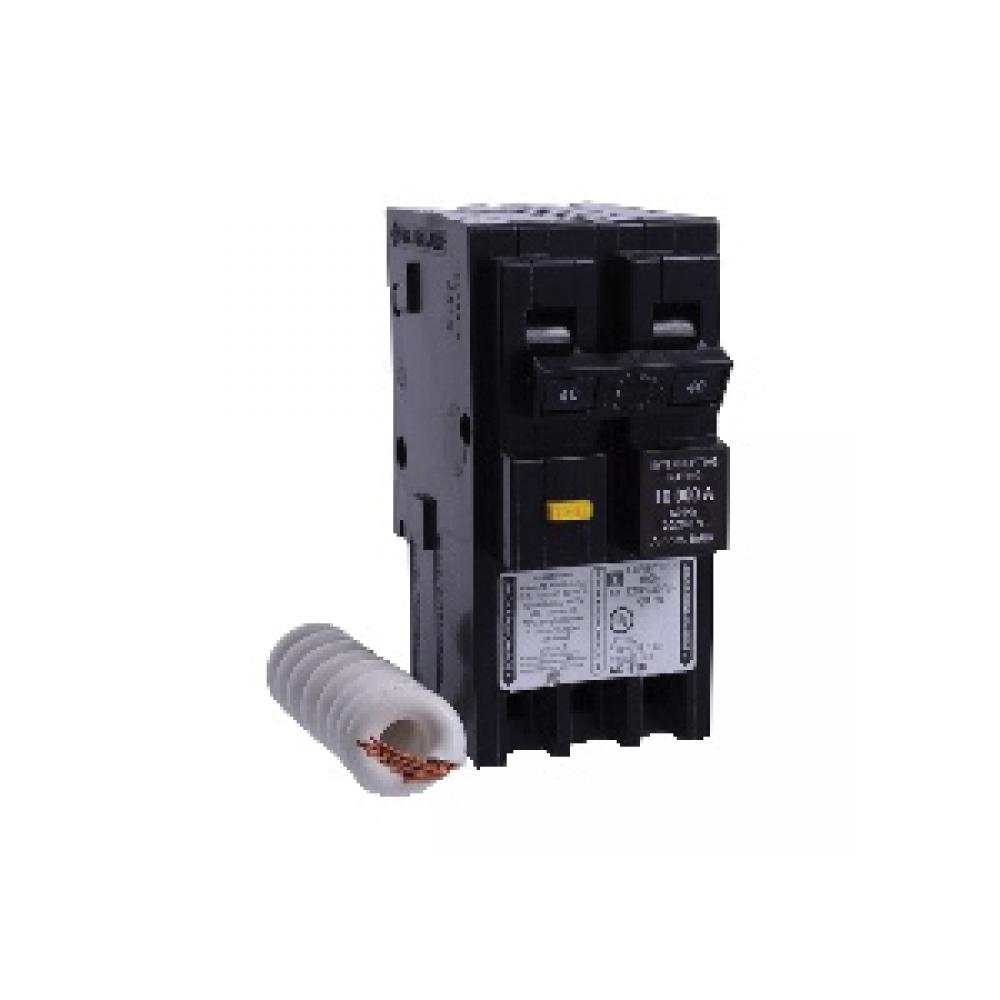

Schneider Electric HOM240GFI

Schneider Electric HOM240GFI by Square D by Schneider Electric

$
154
16
/ 1
  • Part Number: HOM240GFI
  • UPC: 00785901303466
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Square D™ HOM240GFI Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Circuit Breakers
Category Level 3:
Ground-Fault Circuit Breakers
Amperage Rating:
40
40 A
Application:
For use on AC systems
Category Name:
Ground-Fault Circuit Breakers
Connection Type:
Screw Clamp
Screw Terminal
Country:
USA
Dimensions:
2.98 in L
Enclosure Type:
NEMA 1/2
Frequency Rating:
50/60 Hz
Interrupt Rating:
10
10 kA
Length:
5.0
Mounting Type:
Plug-In
Number of Poles:
2
Phase:
1
Series:
HOM
Standard/Approvals:
UL E-6294, Federal Specifications W-P-115b, NEC, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to caus
Temperature Rating:
75
75 deg C
Trip Type:
Thermal Magnetic
Type:
Class A Ground Fault Protecting
Unspsc:
39121603
Voltage Rating:
120/240
120/240 VAC
Volume:
40.0
Weight:
1.0
Wire Size:
12 to 4 AWG, 14 to 6 AWG
12 to 4/14 to 6
Additional Information
Manufactured By:
Square D by Schneider Electric
