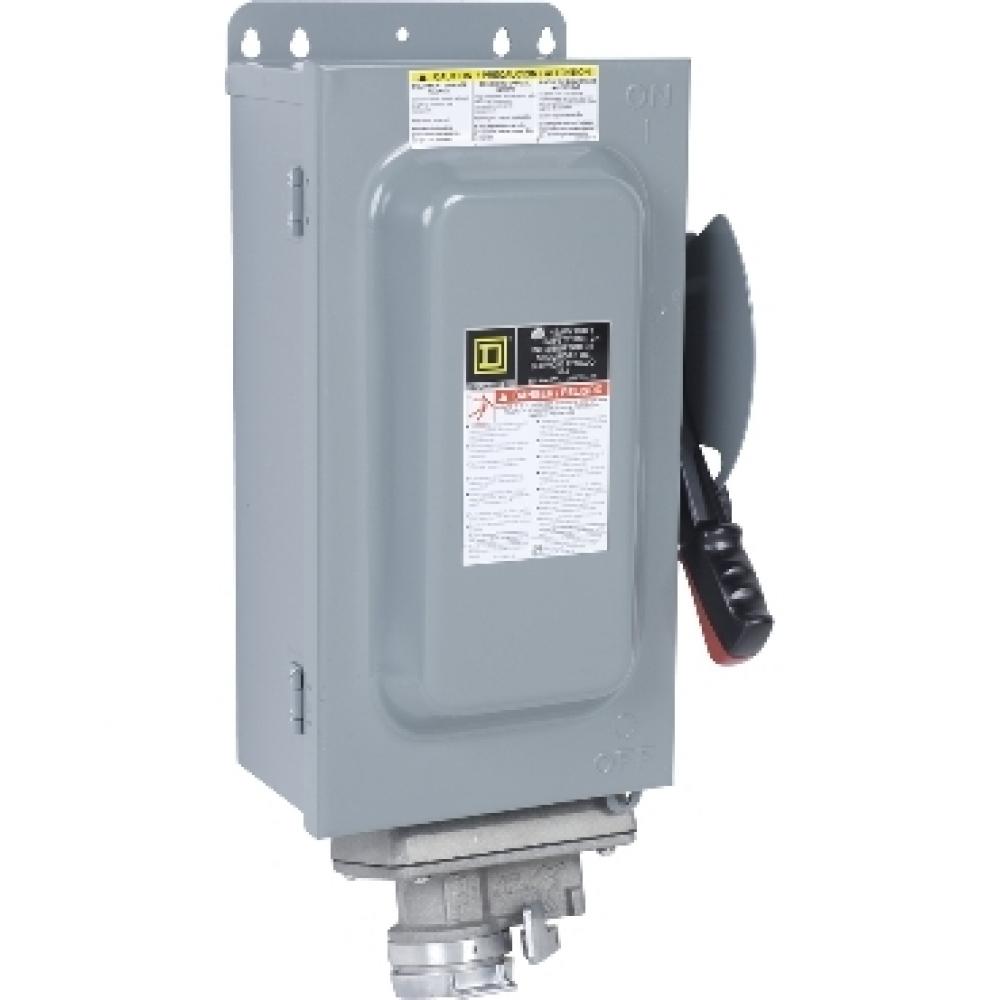

Square D™ H361WC F6 Fusible General Purpose Interlocked Heavy Duty Safety Switch With Crouse-Hinds Arktite™ Interlocked Receptacle, 600 VAC/VDC, 30 A, 20 hp at 600 VAC, Single Throw Contact Form, 3 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Application
Category Name:
Heavy Duty Safety Switches
Dimensions:
18.19 in H x 10.5 in W x 6.81 in D
Short Circuit Current Rating:
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, Federal Specifications WS-865C, UL 98, File No. E2875, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, whi
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Fusible General Purpose Interlocked
Manufactured By:
Square D by Schneider Electric
