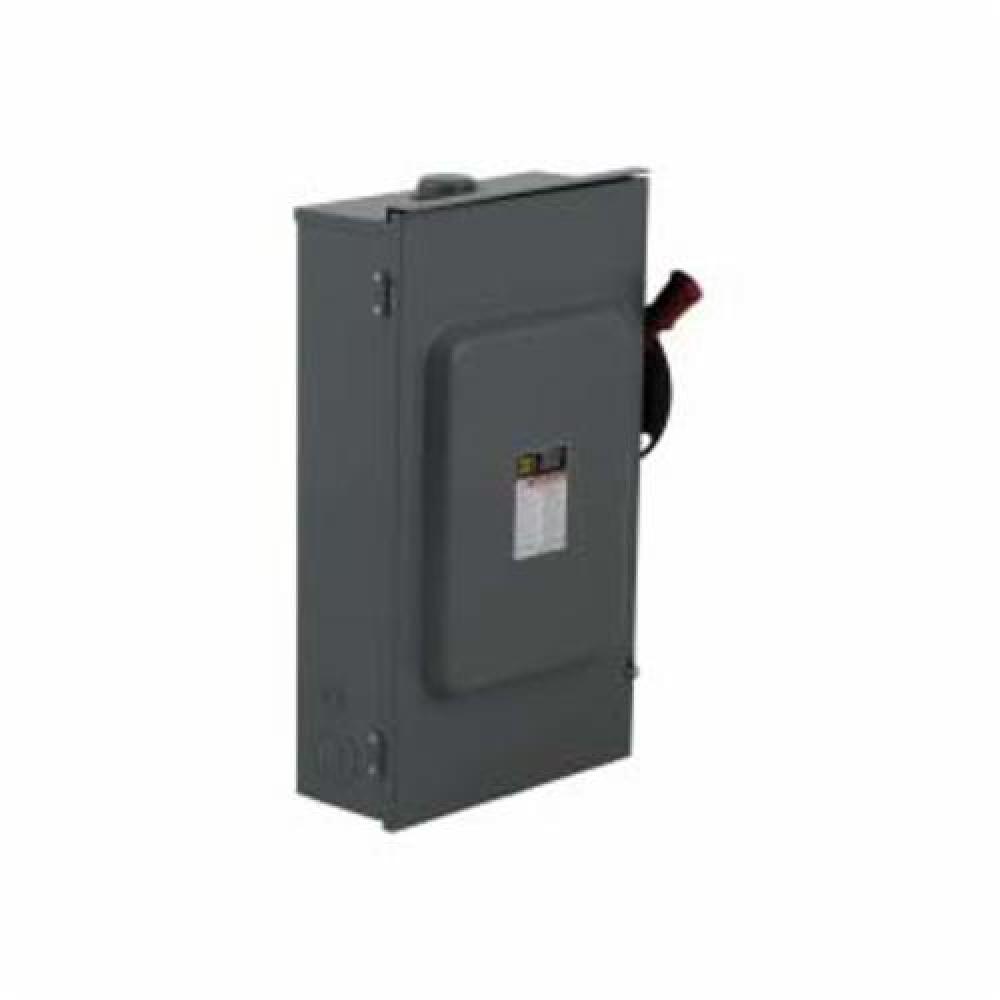

Square D™ H224NRB F5 Fusible Iceproof Rainproof Sleetproof Heavy Duty Safety Switch With Factory Installed Neutral and Bolt-On Hub Provision, 240 VAC/250 VDC, 200 A, 15 hp, 25 hp, 60 hp, 40 hp, DPST Contact Form, 2 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Commercial, Industrial and Indoor/Outdoor Applications
Category Name:
Heavy Duty Safety Switches
Dimensions:
18.63 in W x 8.5 in D x 29.25 in H
29.25 in H x 18.63 in W x 8.5 in D
Finish:
Galvanized/Painted
Galvanneal/Painted
Horsepower:
15 hp, 25 hp, 40 hp, 60 hp
15 hp, 25 hp, 60 hp, 40 hp
Short Circuit Current Rating:
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer a
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Fusible Iceproof Rainproof Sleetproof
Heavy Duty Fusible Iceproof Rainproof Sleetproof
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Manufactured By:
Square D by Schneider Electric
