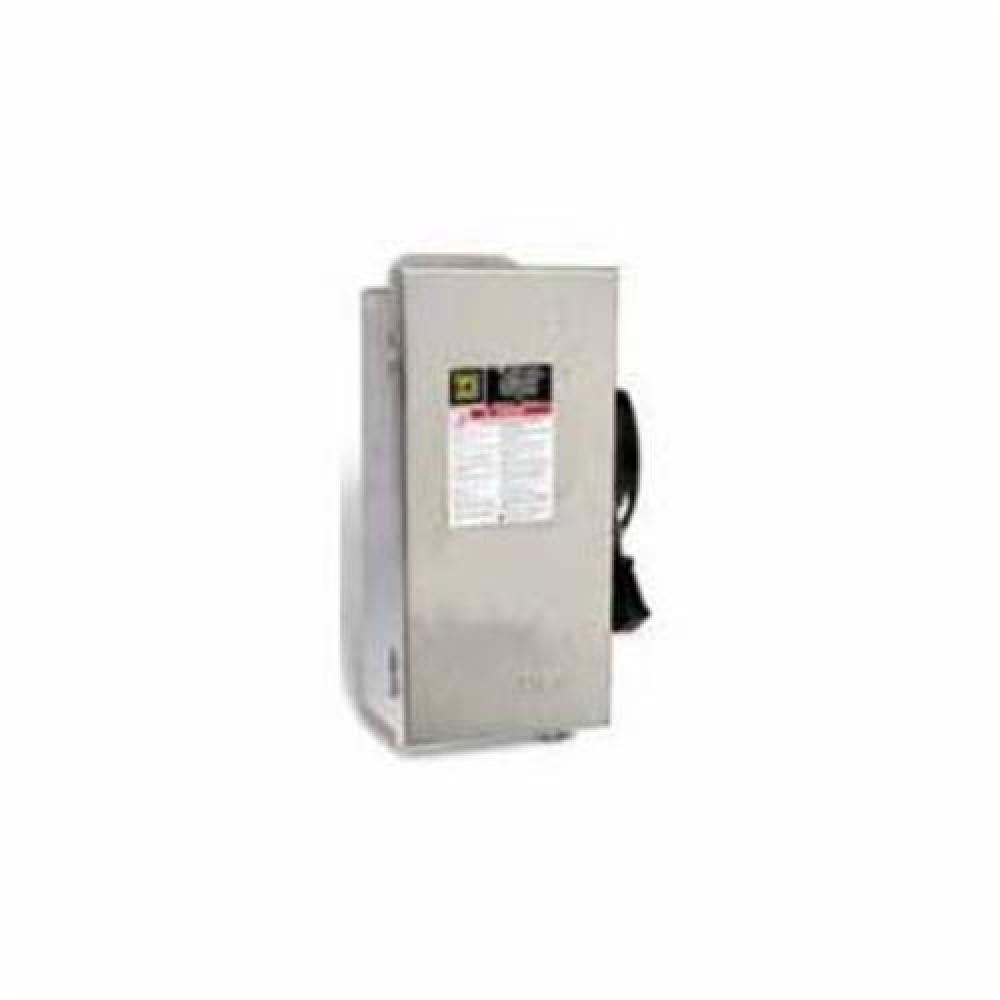

Square D™ H221DS F6 Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight Heavy Duty Safety Switch, 240 VAC/250 VDC, 30 A, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp, DPST Contact Form, 2 Poles
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Heavy Duty Safety Switches
Application:
Commercial, Industrial and Indoor/Outdoor Applications
Category Name:
Heavy Duty Safety Switches
Dimensions:
14.93 in H x 8.67 in W x 5.11 in D
Horsepower:
1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp
Short Circuit Current Rating:
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known
Temperature Rating:
-22 to 104
-22 to 104 deg F
Type:
Corrosion-Resistant Dust-Tight Fusible Rainproof Watertight
Voltage Rating:
240 VAC/250 VDC
240/250 VAC/VDC
Manufactured By:
Square D by Schneider Electric
