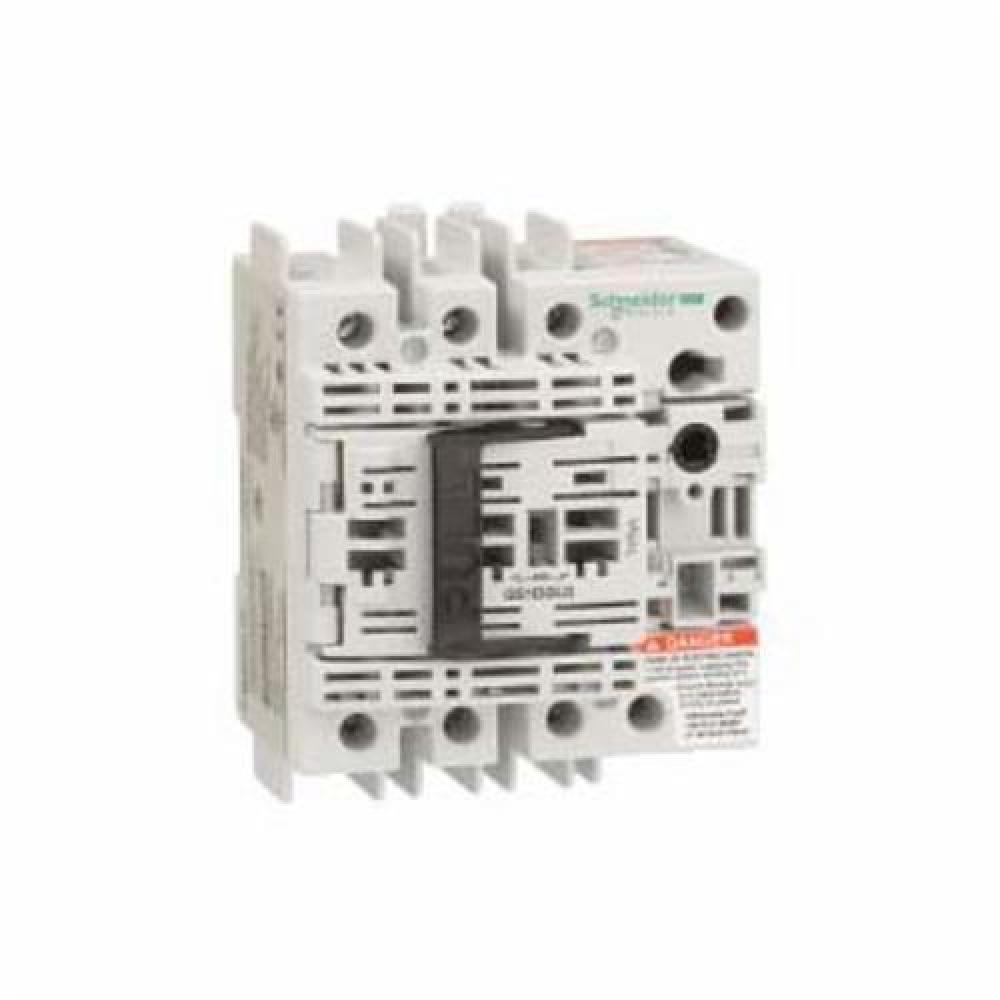

Schneider Electric GS1DDU3

Schneider Electric GS1DDU3 by Square D by Schneider Electric

Call for Price
  • Part Number: GS1DDU3
  • UPC: 00785901179535
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Schneider Electric TeSys™ GS1DDU3 Compact Fusible Disconnect Switch With Terminal Cover, 600 VAC/250 VDC, 30 A, 20 hp, 5 hp, 3NO Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Open Rotary Control Disconnects
Actuator Type:
GS Handle
Amperage Rating:
30
30 A
Category Name:
Open Rotary Control Disconnects
Contact Form:
3NO
Country:
USA
Dimensions:
116 mm H x 97 mm W x 83.5 mm D
97 mm W x 83.5 mm D x 116 mm H
Enclosure Type:
IP20/NEMA 1/12/3R/4/4X
Frequency Rating:
50/60
50/60 Hz
Horsepower:
20 hp, 5 hp
3 hp, 7-1/2 hp, 15 hp
Insulation Type:
Class CC
Length:
6.0
Mounting Type:
Panel
Number of Poles:
3
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ECCN EAR99|CSA Certified|UL 98|IEC 60529|PROP65: Cancer - www.P65Warnings.ca.gov
Temperature Rating:
-4 to 158
-4 to 158 deg F
Terminal Type:
Lug Ring
Type:
Compact Fusible
Unspsc:
39122233
Voltage Rating:
600 VAC
600 VAC/250 VDC
Volume:
161.0
Weight:
1.0
Additional Information
Manufactured By:
Square D by Schneider Electric
