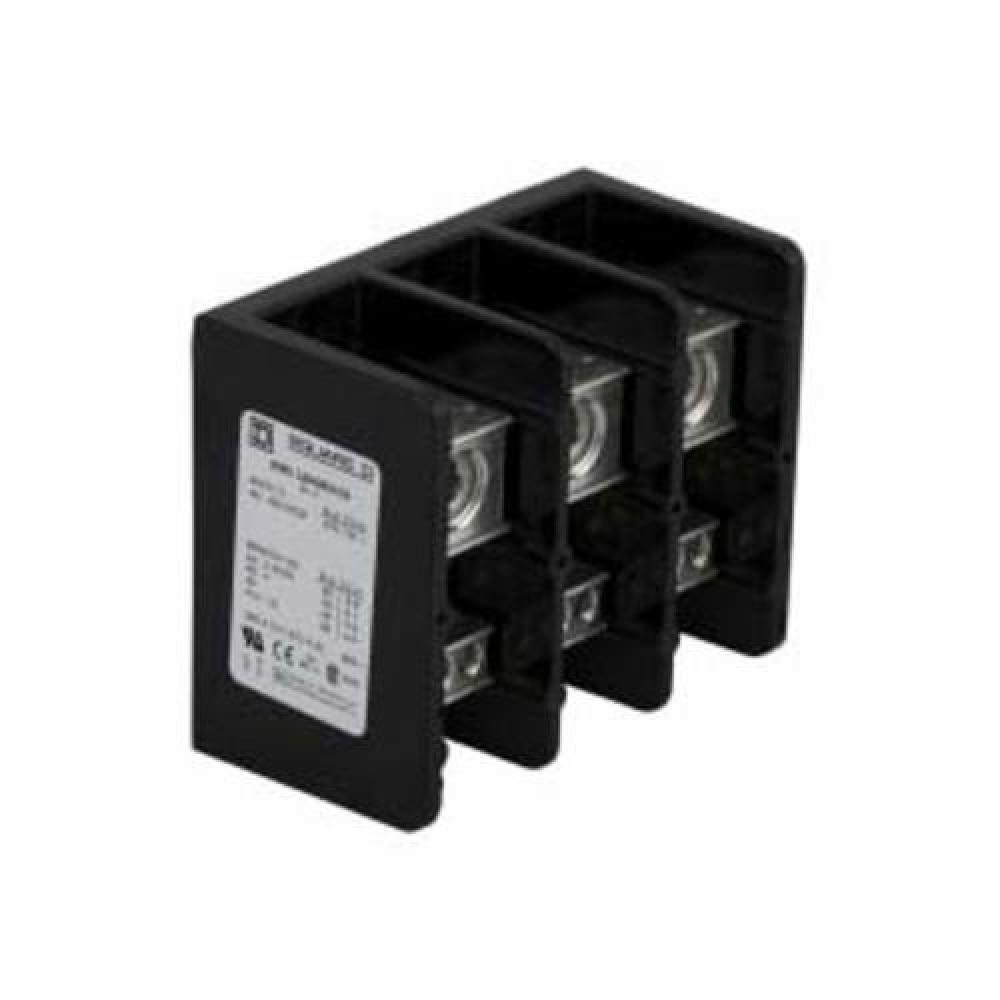

Square D™ TeSys™ 9080LBA363106 Standard Power Distribution Block, 600 VAC/VDC, 335 A, 270 A, 3 Poles, 6 AWG to 400 kcmil, 14 to 2 AWG Wire, Phenolic
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Power Distribution Blocks
Category Level 3:
Multi Pole Distribution Blocks
Application:
For use with 9080LB33 power distribution block covers
Category Name:
Multi Pole Distribution Blocks
Dimensions:
4 in H x 5 in W x 2.61 in D
5 in W x 2.61 in D x 4 in H
Primary Connections/Pole:
Secondary Connection/Pole:
Short Circuit Current Rating:
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E60616|UL94 V-0 Flammability Rating|CSA File No. LR70361|CE Marked|PPROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of Cal
Wire Size:
6 AWG to 400 kcmil, 14 to 2 AWG
6 AWG to 400 kcmil/14 to 2 AWG
Manufactured By:
Square D by Schneider Electric
