Schneider Electric 8538SCG11V06

Schneider Electric 8538SCG11V06 by Square D by Schneider Electric

$
1,324
54
/ EA / 1 EA
  • Part Number: 8538SCG11V06
  • UPC: 00785901862482
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

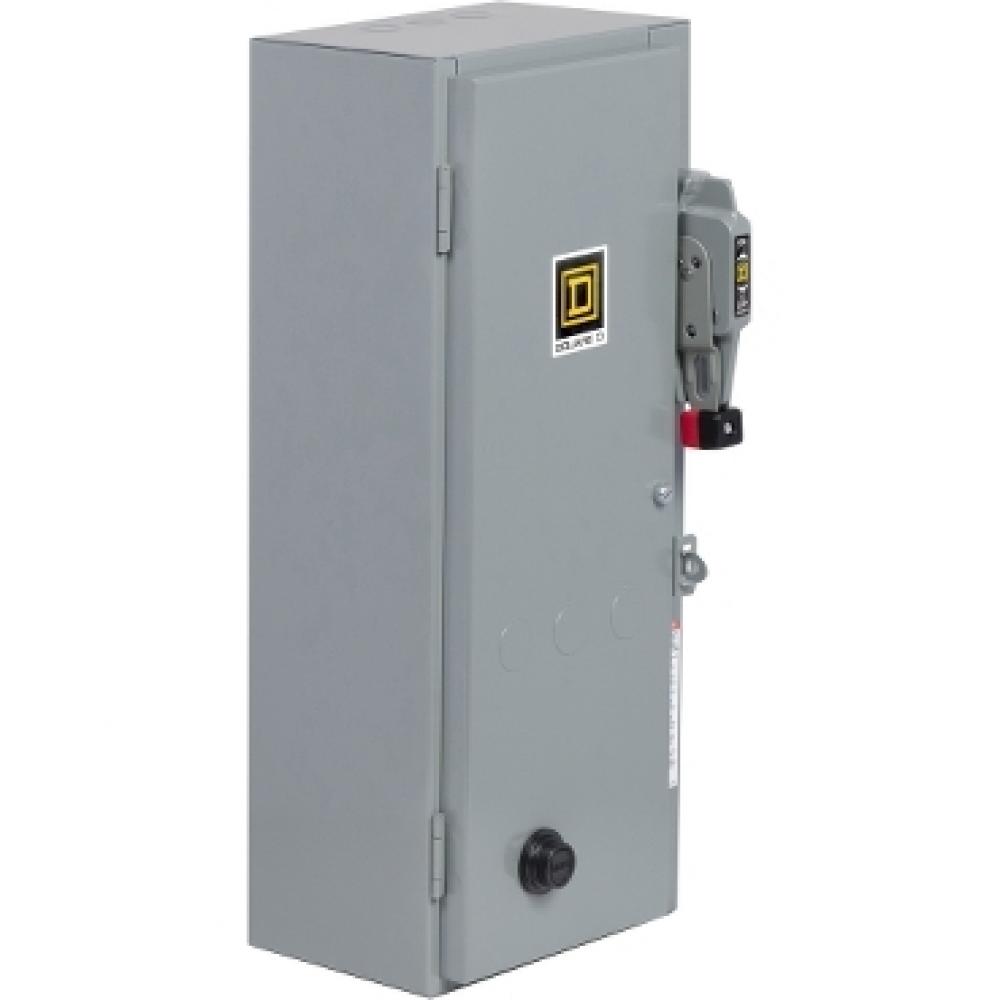

Square D™ 8538SCG11V06 Type S Combination Magnetic Starter With Non-Fusible Disconnect Switch, 440 VAC at 50 Hz/480 VAC at 60 Hz Coil, Non-Reversing Action, 3 Poles, NEMA 1
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Starters
Category Level 3:
NEMA Combination Starters
Amperage Rating:
27 A
Coil Voltage:
440 VAC at 50 Hz/480 VAC at 60 Hz
Connection Type:
Pressure Wire Lug
Dimensions:
9.5 in W x 8.34 in D x 22.5 in H
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Sheet Steel
Motor Power:
7.5 hp at 200/230 VAC/10 hp at 460/575 VAC
Number of Poles:
3
Operating Temperature:
32 to 104 deg F Ambient
Phase:
3 ph
Reset Type:
(3) Thermal Melting Alloy
Series:
8538
Type:
Type S
Voltage Rating:
600 VAC
Wattage:
5.5 kW at 208/240 VAC/7.5 kW at 480/600 VAC
Additional Information
Manufactured By:
Square D by Schneider Electric
