Schneider Electric 28908

Schneider Electric 28908 by Square D by Schneider Electric

Call for Price
  • Part Number: 28908
  • UPC: 00785901324942
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

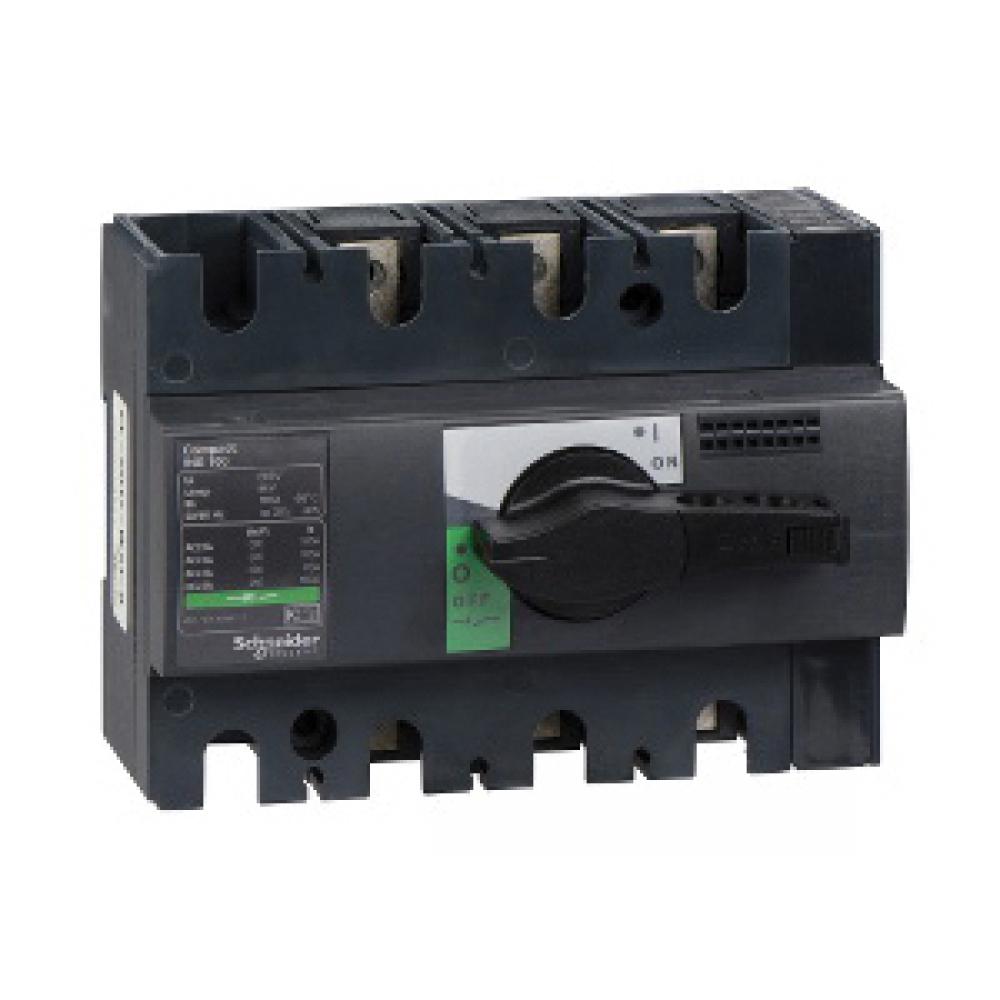

Schneider Electric Compact™ 28908 Fixed Mount Switch Disconnector With Black Handle, 690 VAC/125 VDC, 100 A, 3 Pole
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
DC Rated Disconnects
Actuator Type:
Rotary Handle
Amperage Rating:
100
100 A
Category Name:
DC Rated Disconnects
Country:
USA
Dimensions:
100 mm H x 135 mm W x 62.5 mm D
135 mm W x 62.5 mm D x 100 mm H
Enclosure Type:
IP40/IK07
Frequency Rating:
50/60 Hz
Length:
6.0
Mounting Type:
DIN Rail/Surface
Number of Poles:
3
Short Circuit Current Rating:
20
20 kA
Standard/Approvals:
ARRA, Buy American Act, RoHS Compliant, CCC Certified, IEC 60947-1, 60947-3, California Provision: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the
Temperature Rating:
-25 to 70
-25 to 70 Deg C
Type:
Fixed Mount
Unspsc:
39121616
Voltage Rating:
690 VAC/125 VDC
Volume:
151.0
Weight:
2.0
Additional Information
Manufactured By:
Square D by Schneider Electric
