MERSEN MD320U11

MERSEN MD320U11 by MERSEN

Call for Price
  • Part Number: MD320U11
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

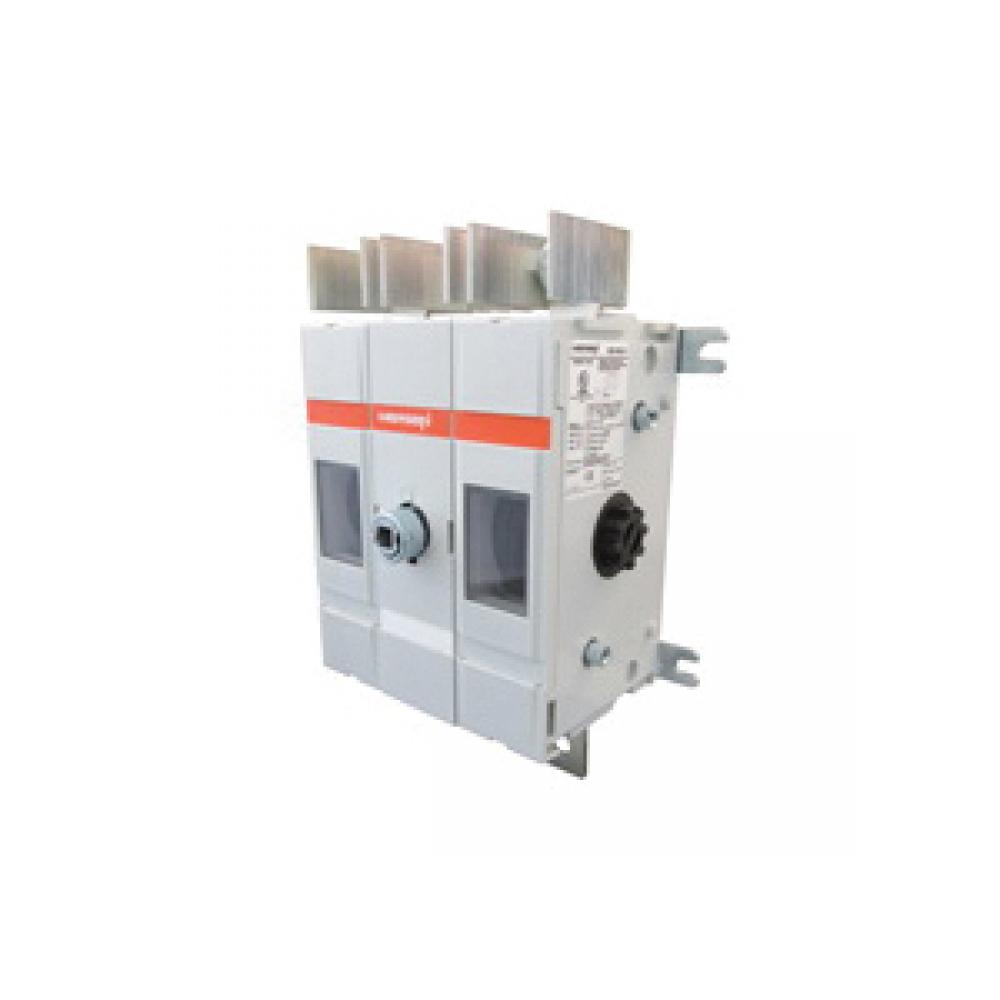

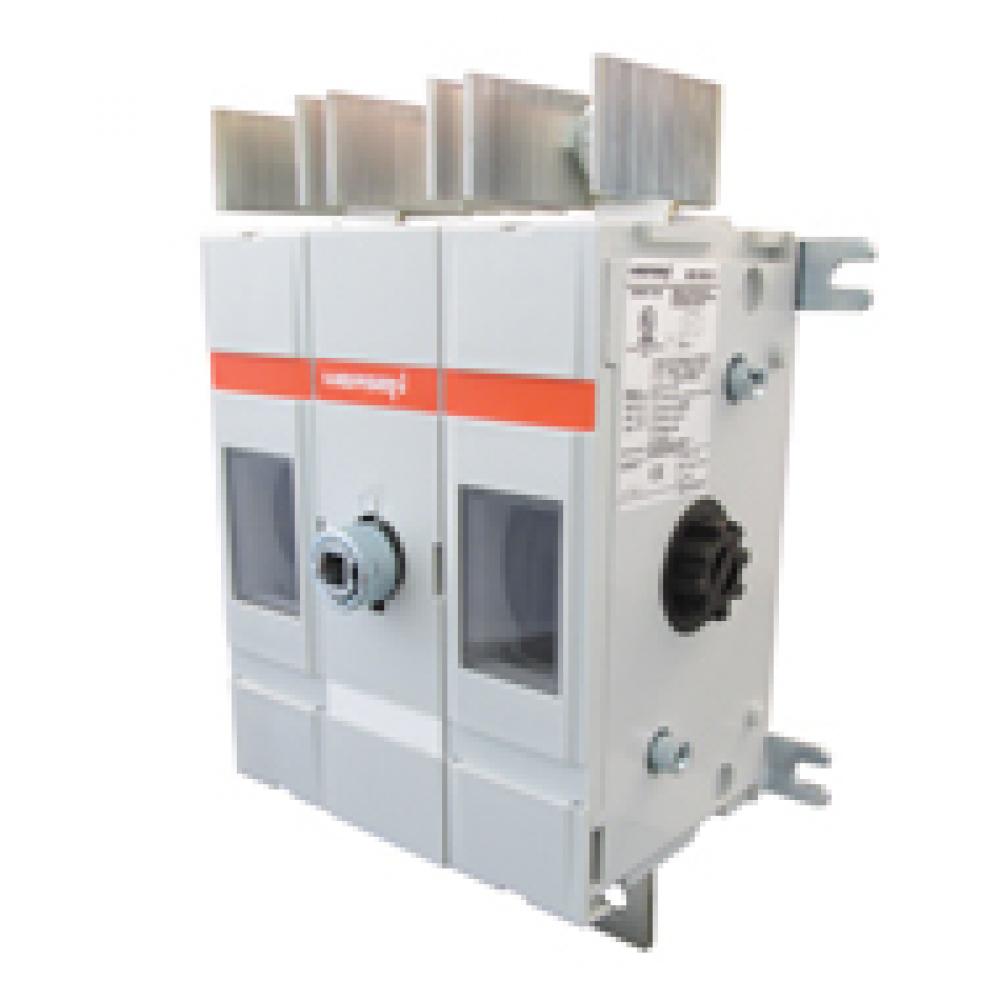

Ferraz Shawmut MD320U11 PV-Rated DC Disconnect Switch, 1000 VDC, 320 A, 2 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
DC Rated Disconnects
Actuator Type:
Handle
Amperage Rating:
320
320 A
Application:
For medium and larger photovoltaic installations
Category Name:
DC Rated Disconnects
Country:
USA/Canada
Dimensions:
227 mm H x 197 mm W x 113.5 mm D
Frequency Rating:
50
50 Hz
Length:
9.0
Material:
BE
Mounting Type:
Base
Number of Poles:
2
Short Circuit Current Rating:
5/10
5/10 kA
Standard/Approvals:
RoHS Compliant, UL 98B File No. E466972 WHVA, IEC 60947-3, CE Certified, cULus Listed, CSA Certified
Temperature Rating:
-20 to 50
-20 to 50 deg C
Terminal Type:
Blade
Type:
PV-Rated
Unspsc:
39122233
Voltage Rating:
1000
1000 VDC
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
MERSEN
